Low Alloy High Strength Plate

Low-alloy high-strength plate, also known as low-alloy high-strength structural steel plate, is a type of steel that achieves significantly higher strength than ordinary carbon structural steel by adding small amounts of alloying elements to low-carbon steel. It perfectly balances high strength, excellent toughness, and outstanding weldability, making it an indispensable key material in modern engineering structures.

Low-alloy high-strength plate is developed from carbon structural steel by adding elements such as manganese (Mn) and silicon (Si), typically totaling no more than 3%, and trace amounts of alloying elements such as niobium (Nb), vanadium (V), and titanium (Ti).

1. Low carbon content: The carbon content is typically below 0.20%, even less than 0.25%, ensuring its excellent weldability and toughness.
2. High strength: Its yield strength generally exceeds 275 MPa, achieved through microalloying and controlled rolling and cooling (TMCP) processes.
3. Microalloying: The added niobium, vanadium, titanium, and other elements effectively refine the grains and produce precipitation strengthening, significantly increasing strength without sacrificing plasticity and toughness.

The naming convention for low-alloy high-strength steel plates follows the national standard GB/T 1591-2018 "Low-alloy High-strength Structural Steel," with the format "Q" + "strength value" + "quality grade."

Classification and Grade system
Q: Represents the initial letter of the pinyin for "yield strength."
Strength value: Indicates the minimum yield strength, measured in megapascals (MPa). Common grades include Q390, Q420, Q460, Q500, Q550, and Q690. Higher values indicate greater strength.

Quality grade: Represented by A, B, C, D, and E, with requirements for impact toughness and other properties increasing sequentially from A to E. For example, Q420D indicates steel with a yield strength of 420 MPa and a quality grade of D.

Core Performance Advantages:
1. High strength and lightweight: These are its most prominent features. Compared to ordinary carbon steel, low-alloy high-strength steel plates can reduce structural weight by 20%–30% at the same strength. For example, the yield point of typical automotive steel can be increased to 550 MPa or higher through processing.
2. Excellent toughness: It possesses good low-temperature impact toughness, maintaining stable performance in cold environments. For example, its impact absorption energy at -40℃ can reach over 27 J.
3. Excellent weldability: Its low carbon equivalent design gives it good weldability, making it suitable for manufacturing various large welded structural components.
4. Good corrosion resistance: It has a certain degree of resistance to atmospheric corrosion, extending the service life of the structure.
5. Good formability: It possesses excellent cold and hot working formability, facilitating bending, stamping, and other processing.

HSLA steel plates are used in cars, trucks, cranes, bridges, roller coasters, and other structures designed to handle large amounts of stress or requiring a good strength-to-weight ratio. HSLA steel cross-sections and structures are typically 20 to 30% lighter than carbon steel with the same strength. HSLA steel plates are also more resistant to rust than most carbon steels because of their lack of pearlite – the fine layers of ferrite (almost pure iron) and cementite in pearlite. HSLA steels usually have densities of around 7800 kg/m³.
Thermomechanical Control Process (TMCP) is key to producing low-alloy high-strength steel plates. It refines the grain size by precisely controlling the rolling temperature and cooling rate to obtain an ideal microstructure, thereby improving strength while ensuring toughness and weldability.
Low-alloy high-strength steel plates are one of the "skeleton materials" of modern industry. It has achieved a huge leap in performance at a relatively low cost and are the core material basis for promoting lightweight, large-scale, and high-performance development in many fields.

China Standard:
In China, common production standards for Low Alloy High Strength Plate include
GB/T 1591-2018: High strength low alloy structural steels.
This standard applies to low-alloy high-strength structural steel plates, steel strips, section steel, steel bars, etc. for general structures and engineering. Its chemical composition is also suitable for steel billets.
GB/T 3274-2017: Hot-rolled plates、sheets and strips of carbon structural steels and high strength low alloy structural steels.
This standard applies to hot-rolled steel sheets and strips of carbon structural and low-alloy structural steels with a thickness not greater than 400mm.

American standard:
In the United States, common production standards for Low Alloy High Strength Plate include
ASTM A572/A572M-18: Standard Specification for High Strength Low Alloy Steels for Building Construction
ASTM A709/A709M-18: Standard Specification for Structural Steel for Bridges
ASTM A514/A514M-18: Standard Specification for High Strength Alloy Steel Plates

British Standards:
In the UK, common production standards for Low Alloy High Strength Plate include
BS EN 10025-2: Standard for Technical Delivery Conditions of Structural Steel
BS EN 10025-6: Standard for Technical Delivery Conditions for Hot Rolled Products, including High Strength Low Alloy Steels
BS EN 10149-2: Standard for technical delivery conditions for cold-rolled hot-rolled steel plates and strips

Japanese Standards:
In Japan, common production standards for Low Alloy High Strength Plate include
JIS G3101: Standard for general-purpose hot-rolled weldable structural steel
JIS G3106: Standard for Hot Rolled Weldable High Strength Steel Sheets and Strips
JIS G3114: Standard for Hot Rolled Atmospheric Corrosion Resistant Structural Steels

The following specific specification standards are the Chinese national standards.
GB/T 1591-2018
Thickness: 3 mm to 150 mm
Width: 900 mm-4800 mm
Length: 3000 mm-25000 mm
Weight: 1.5 ton - 25 ton
Allowable deviations: The standard document provides specific requirements on size, shape, quality, and allowable deviations, such as straightness, edge condition, surface quality, etc. These requirements will vary depending on the grade and specification.

GB/T 3274-2017
Thickness：6mm-200mm
Width: 1500mm-4700mm
Length: 3000mm-27000mm
Weight: The weight of the steel plate varies according to size and thickness. The common weight range is usually between 1.5 tons and 20 tons, depending on the size and thickness of the steel plate
Allowable deviations: The allowable dimensional and shape deviations are specified in the standard documents. The specific allowable deviation limits will vary depending on the grade, thickness, and size of the steel plate.

Generally speaking, the allowable dimensional deviation includes length deviation, width deviation, and thickness deviation, while the shape deviation includes the curvature and straight edge of the steel plate, etc.

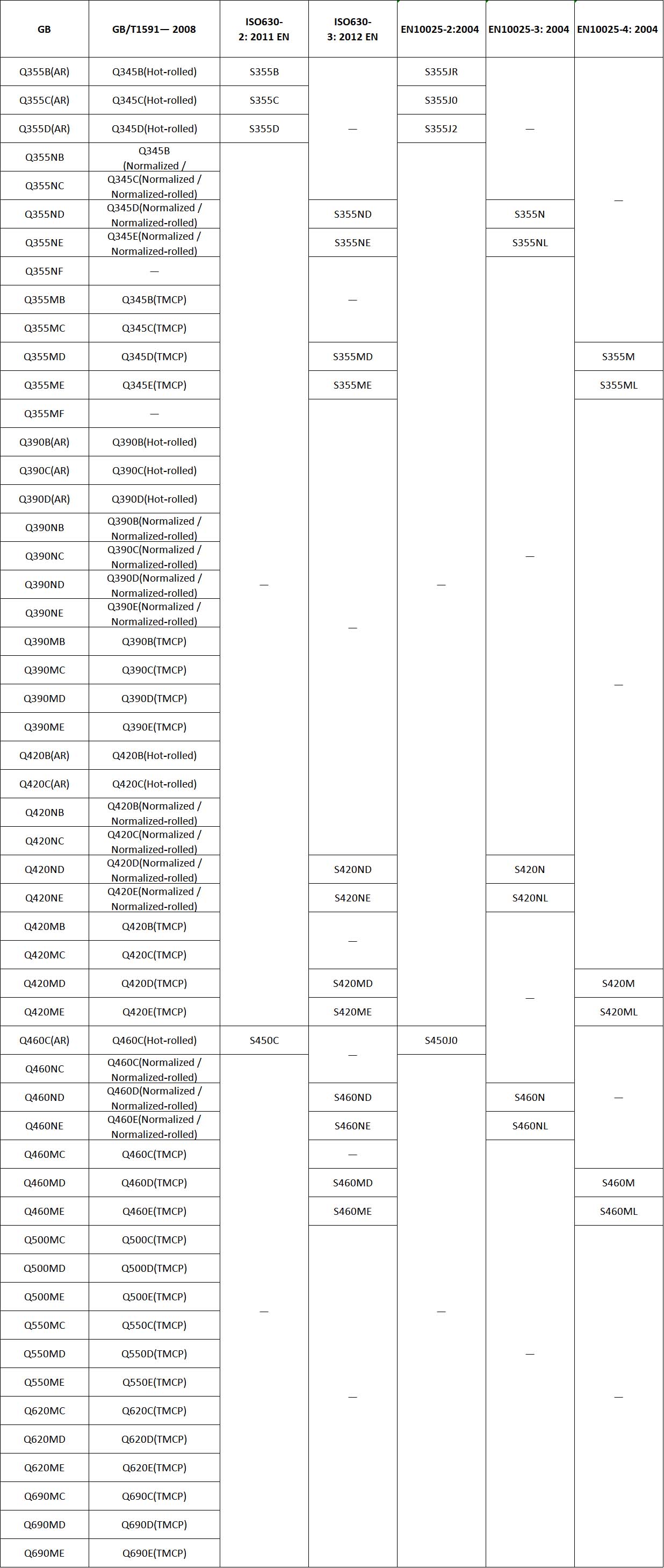

Comparison table of domestic and international standard grades for low-alloy high-strength plates:
